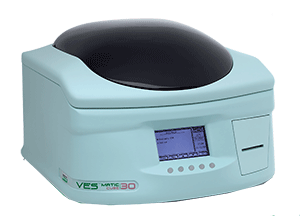

Automated system for the direct determination
of ESR in blood/EDTA samples
Automatic instrument for the determination of the ESR on 30 samples simultaneously directly on the hematocrit tube. The ESR reading at the first hour is performed in 33 minutes including the mixing of samples. Host query interface.
Top Line Features
Automated system for the direct determination of ESR in blood/EDTA samples.
30 results in a snap
Central unit and interfaces: with low dissipation RISC 8 BIT technology; ATMEGA128 microprocessor

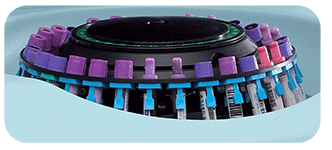

Test-tube holder: with 30 number places, it can hold various types of test-tubes
Optical unit: one couple of optic-electronic elements (led & analogical sensor)
Dimensions: 510 x 350 x 500 mm (I x h x d)
Working temperature: from +15C to 35C
Plate rotation speed
No contact with blood;
No blood is withdrawn;
No liquid waste is produced.
Automated mixing of sample
510 x 350 x 500 mm (l x h x d)
110/230 V ac
Liquid-crystal graphic with a LED lamp, 240x128 pixels
Alphanumeric with thermal paper 58 mm wide, 36 characters per line, speed 20 mm / sec.
