Minineph Plus

  • Overview
  • Features
  • Advantages
  • Assays
  • Technical Specifications
  • Documents
MININEPH PLUS

MININEPH PLUS™

Minineph Plus, binding site, minineph analyser,Nephelometry Analyzer

Minineph Plus, binding site, minineph analyser,Nephelometry Analyzer

A stylish and compact analyser offering rapid quantitation
of Freelite® and a wide range of specialist protein assays for the low volume user

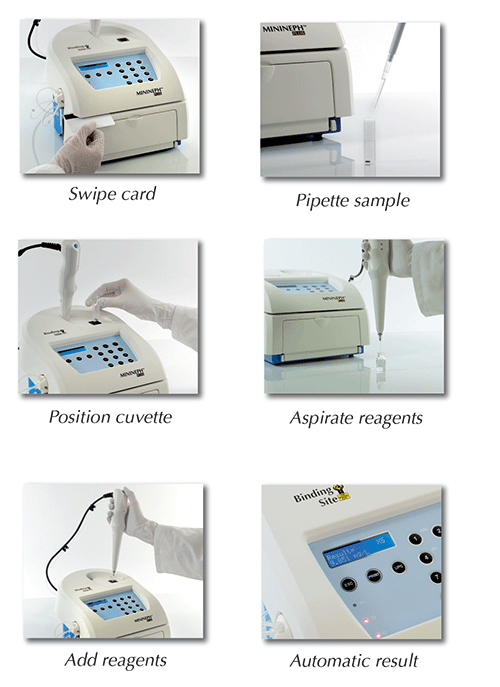

The MININE PHPLUS™ is a small, semi-automated nephelometer. It is easy to use and enables your laboratory to offer a cost efficient service for lower volume specialist protein assays.

Top Line Features

Minineph Plus, binding site, minineph analyser,Nephelometry Analyzer
  • Integrated electronic pipette included
  • Optional thermal printer & barcode reader
  • Measurement method is endpoint nephelometry
  • Laser diode light source (670nm, <1mW-Class II)
  • Dimensions (Analyser and pipette): W 240mm, D 280mm, H 360mm
  • Weight (Analyser and pipette): 5.7kg
  • Languages: English, French, German, Spanish, Portuguese, Italian
  • Power requirements: 90-250V, 50-60Hz, 80VA
  • Optimized to run FreeliteTM, HevyliteTM and other specialist protein assays including IgG subclasses.
  • 10 minute assay incubation - 15 minutes to first result - every 30 seconds thereafter 24 reagent positions
  • Dual reagent probes with automated washing between reagent addition
  • Sample Type: serum, plasma, urine
  • 40 sample + 5 STAT positions per carousel: 30 primary/secondary tube with barcode reading.
  • Up to 240* tests/hr
  • Runs your specialist protein assays
  • Automatic Antigen Excess Check
  • Minimal carry over through contact free Sample/Reagent air mixing
  • Intuitive software and robust hardware
  • 1st result in 15 min, subsequent results every 30 seconds
  • On-board reagent cooling/monitoring
  • Wide measuring range minimizes re-runs ensuring optimal reagent usage and throughput
  • Mean time between failure of up to 258 days
  • Ready-to-use barcoded reagents
  • Fully integrated bi-directional RS232 interface capability
  • Direct loading of calibrators and controls
  • Simple loading and unloading as reagents and samples

Advantages

  • Freelite® serum free light chain assays
    • The only semi-automated nephelometer able to run Freelite®
    • Automatic antigen excess check for Freelite assay
  • Simple to use with on-screen instructions for running assays
    • Interface is available in six different languages which are displayed on the easy to view back-lit LCD display
  • Heated Integral Electronic Pipette
    • Ergonomic pipette requires no volume input further increasing the simplicity of the system
  • Fail safe assay start mechanism
    • Ergonomic pipette requires no volume input further increasing the simplicity of the system
  • Automatic assay blanking & mixing
    • Increases the accuracy and precision of results
  • Hand held barcode reader
    • Eliminates transcription errors and speeds up input of sample identification
  • MININEPH PLUS™ Analyser & kits manufactured by Binding Site
    • Binding Site supplies everything you need to run the MININE PHPLUS™.The systems, assays and results are developed, optimised and validated together, ensuring quality assays and results.
  • User prepared chemistries
    • Also ideal for research laboratories; User prepared chemistries allows the user to develop new assays - ideal for research laboratories.

Assays

Technical Specifications

MININE PHPLUS Technical Specification

  • Measurement Method
    • Endpoint nephelometry
  • Throughput
    • Up to 30 tests per hour
  • Reaction module
    • Laser diode (670nm, <1mW-Class II) light source
    • 45°C or 30°C ± 0.5°C reaction temperature
  • Reagent delivery
    • Integrated pipette with pre-set dispensing volume
    • Heated cuvette block and pipette heat the reagents and on-board buffer to reaction temperature
  • Input
    • Membrane keypad
    • Pre-programmed magnetic swipe cards
    • Hand held sample barcode reader (optional)
  • Output
    • 2 x 16 character alphanumeric LCD display
    • Thermal serial printer (optional)
  • Dimensions
    • Height 360mm x Width 240mm x Depth 280mm
    • Weight 5.7kg (including pipette)
  • Power requirements
    • 100 - 240V AC
    • 50 - 60Hz
    • 80VA

MININEPH PLUS™ Brochure

MININEPH PLUS™ Brochure
